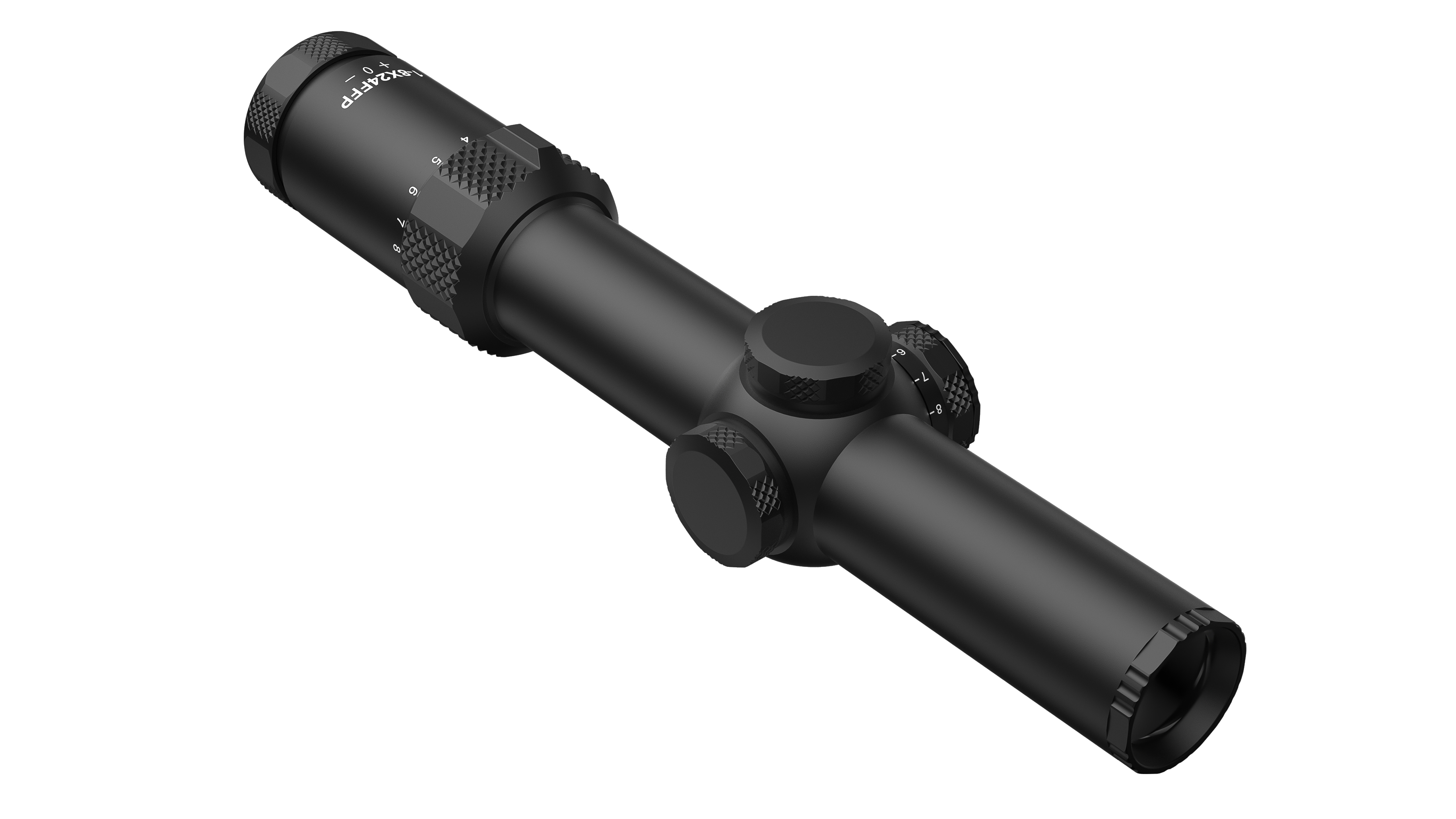

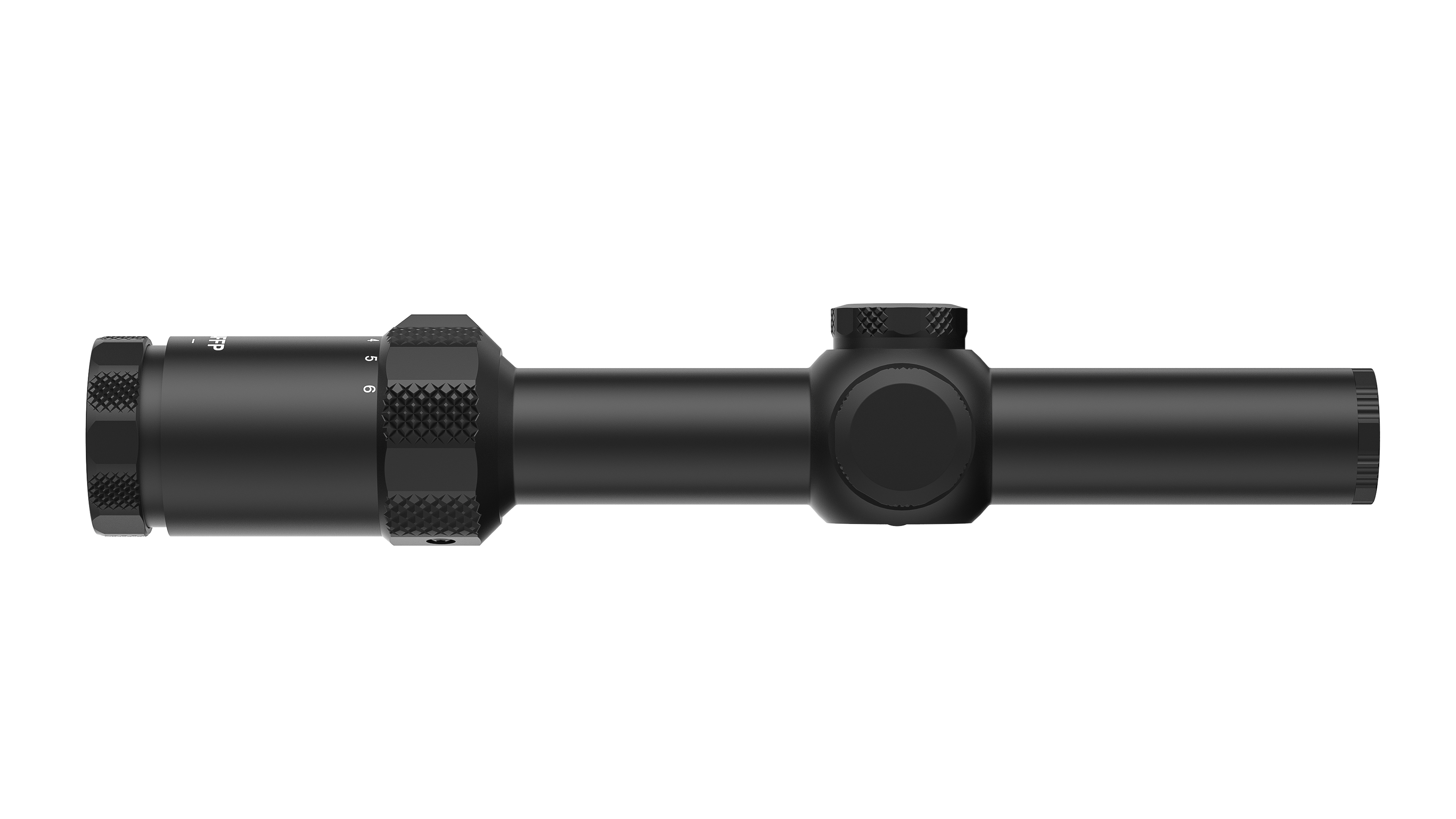

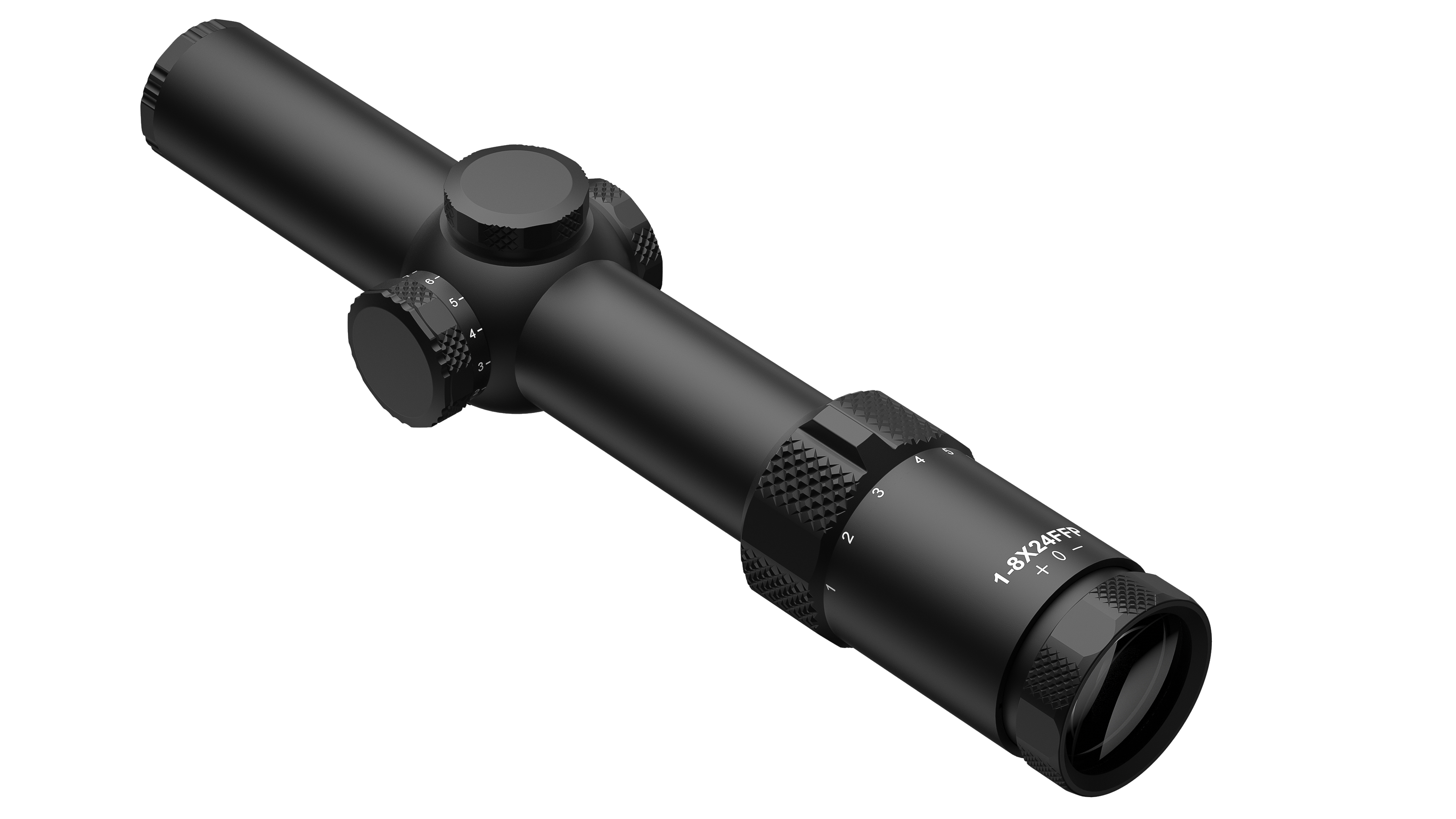

• 1-8X24FFP 34mm
  • 1-8X24FFP 34mm
  • 1-8X24FFP 34mm

Desciption

Features:

  • First focal plane reticles stay true at every magnification
  • High strength one-piece 6061-T6 aluminum body
  • Premium grade glass
  • 8x zoom technology
  • 34mmmain tubes
  • Capped turrets with precise,distinct and audible clicks
  • Fast-Focus eyepiece
  • Water proof, shock resistant, and fog resistant
  • Special OEM design body outlook, reticle and special feature per customer request

Technical Specifications:
YES (submersible,30cm@52℃ 2mins or 1m @room temperature ,30 mins )
Model Number 1-8X24FFP
Magnification 1X-8X
Objective Lens 24mm
Body Tube Diameter 34mm
Focal Plane First
Length(mm) 273
Weight (g) 575
Field of View (ft@100 yds) 116.63~14.4ft
Field of View (Degree) 22°~2.75°
Exit Pupil (min.mag - max.mag) (mm) 10~3
Eye relief (min.mag - max.mag) (mm) 100~90
Eyepiece Focus Range (dpt) -3/+3
Eyepiece Focusing System Fast Focus
Focus Type Fixed
Parallax Adjustment Free at 100 yds
Click Adjustment Value 1/2MOA
Windage Adjustment Range ≥60MOA
Elevation Adjustment Range ≥60MOA
Turret Style (Elevation) Low-profile, toolless resettable zero
Turret Style (Windage) Low-profile, toolless resettable zero
Reticle Type (Etched / Fiber / Wire) Etched (Can be customized)
Lens Coating Fully multi-coated lens
Construction Material One Piece Aluminum (6061)
Color & Finish Matte Black
Battery CR2032
Illumination 11-step red illu.(Optional)
Waterproof YES (submersible,30cm@52℃ 2mins or 1m @room temperature ,30 mins )
Fogproof YES (Nitrogen Purged)
Shockproof YES(1000G's)
Standard Accessories Filp-up covers/Lens Cloth
