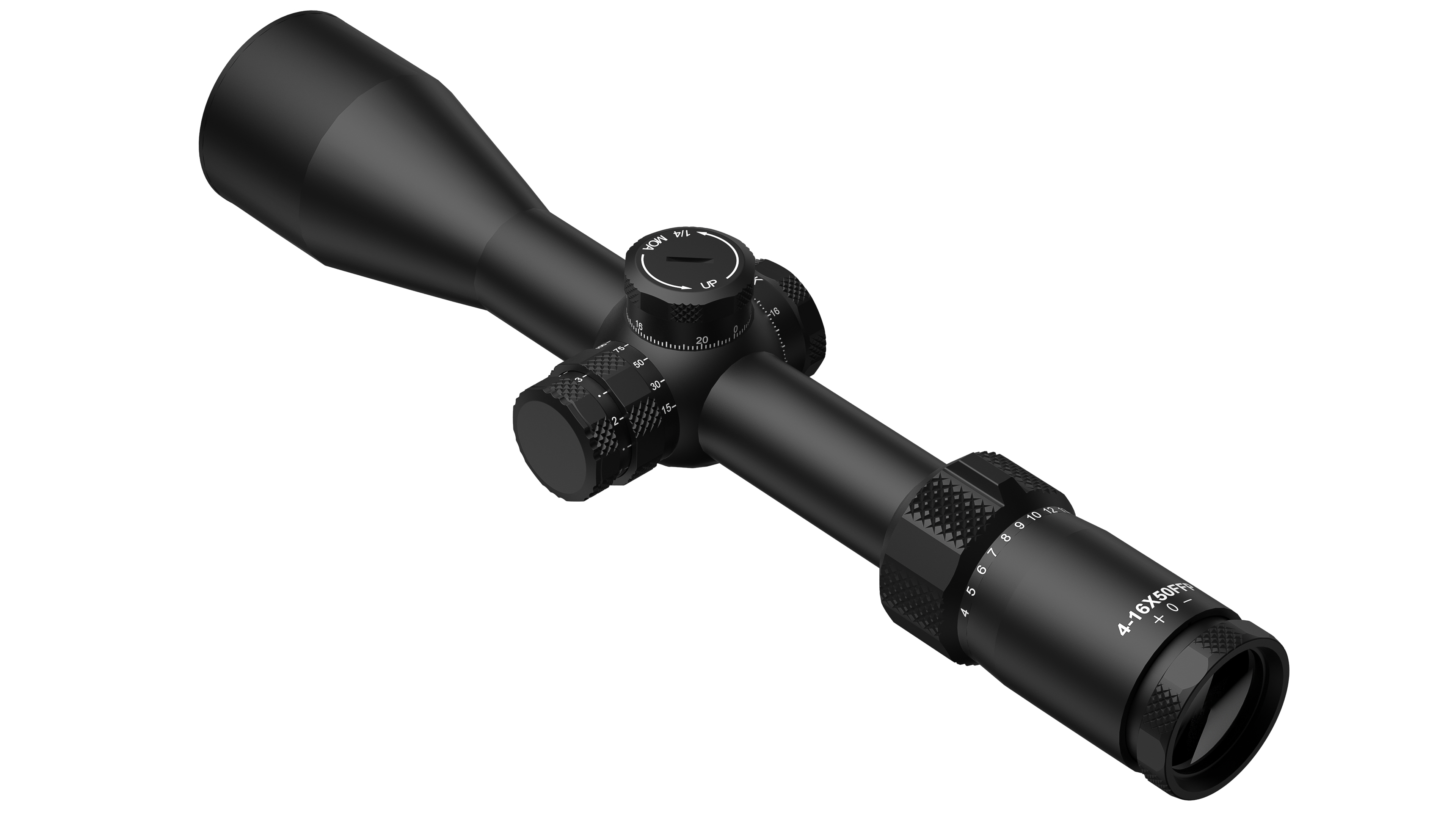

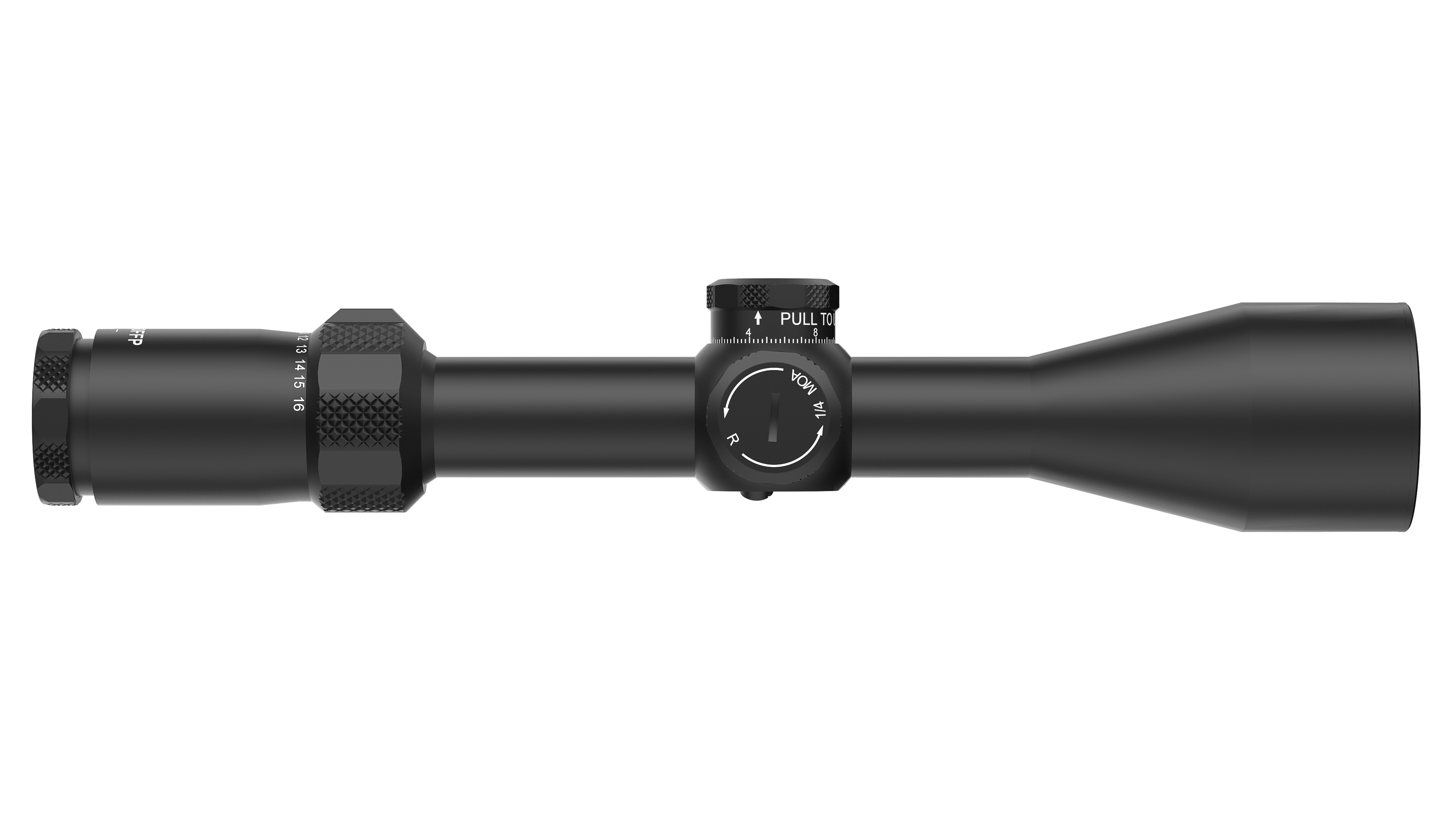

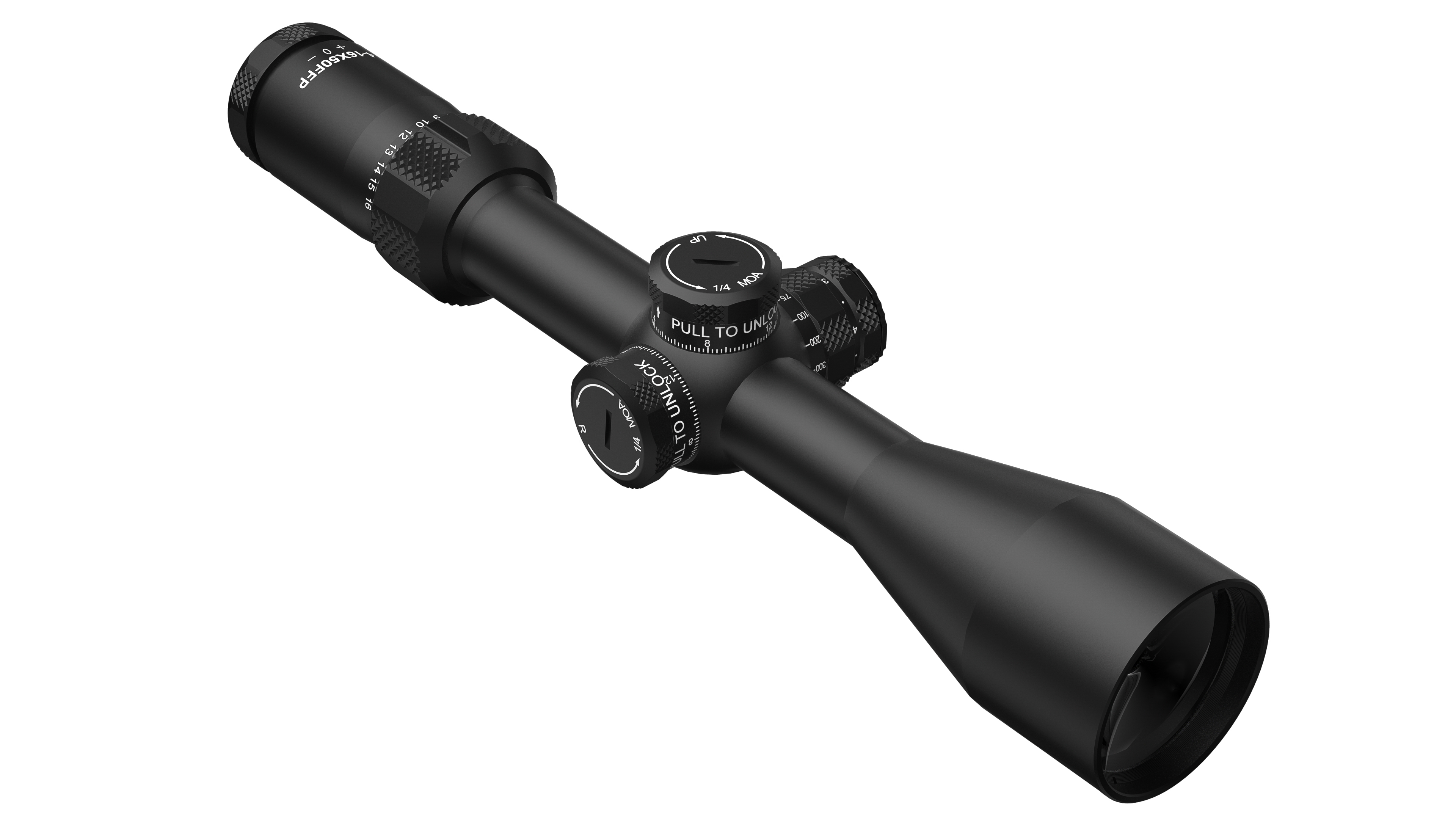

• 4-16X50FFP
  • 4-16X50FFP
  • 4-16X50FFP

Desciption

Features:

  • First focal plane reticles stay true at every magnification
  • Push-pull,exposed locking elevation turret with Zero Stop
  • Parallax adjustment and illumination integrated design
  • Premium grade glass
  • 30mm main tubes
  • High strength one-piece 6061-T6 aluminum body
  • 4x zoom technology
  • Fast-Focus eyepiece
  • Water proof, shock resistant, and fog resistant
  • Special OEM design body outlook, reticle and special feature per customer request

Technical Specifications:
Model Number
4-16X50FFP
Magnification 4X-16X
Objective Lens 50mm
Body Tube Diameter 30mm
Focal Plane First
Length(mm) 335
Weight (g) 740
Field of View (ft@100 yds) 27.5~6.9ft
Field of View (Degree) 5.25°~1.32°
Exit Pupil (min.mag - max.mag) (mm) 10~3.1
Eye relief (min.mag - max.mag) (mm) 100~90
Eyepiece Focus Range (dpt) -2/+2
Eyepiece Focusing System Fast Focus
Focus Type Side Focus
Parallax Adjustment 10yds - Infinity
Click Adjustment Value 1/4MOA
Windage Adjustment Range ≥25MOA
Elevation Adjustment Range ≥25MOA
Turret Style (Elevation) Tactical-profile, push-pull turret,Zero Stop
Turret Style (Windage) Tactical-profile, push-pull turret
Reticle Type (Etched / Fiber / Wire) Etched (Can be customized)
Lens Coating Fully multi-coated lens
Construction Material One Piece Aluminum (6061)
Color & Finish Matte Black
Battery CR2032
Illumination 6-step red illu.(Optional)
Waterproof YES (submersible,30cm@52℃ 2mins or 1m @room temperature ,30 mins )
Fogproof YES (Nitrogen Purged)
Shockproof YES(1000G's)
Standard Accessories Filp-up covers/Lens Cloth
