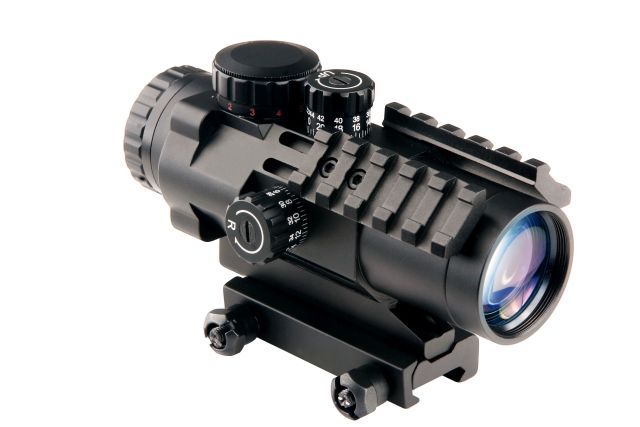

• 4X32
  • 4X32

Desciption

Features:

  • Magnification:4x
  • Integral mount compatible with Weaver/Picatinny-style base
  • Exposed ,lockable and zero-resettable target turrets
  • Compatible with standard carry handle mounts
  • Premium grade glass
  • Fast-Focus eyepiece
  • Water proof, shock resistant, and fog resistant
  • Special OEM design body outlook, reticle and special feature per customer request

Technical Specifications:
Model Number 4X32
Magnification 4X
Objective Lens 32mm
Body Tube Diameter Integrated
Length(mm) 137
Weight (g) 485
Field of View (ft@100 yds) 23.6ft
Field of View (Degree) 4.5°
Exit Pupil (min.mag - max.mag) (mm) 8
Eye relief (min.mag - max.mag) (mm) 80
Click Adjustment Value 1/2MOA
Windage Adjustment Range ≥50moa
Elevation Adjustment Range ≥50moa
Turret Style (Elevation) Tactical-profile, resettable zero
Turret Style (Windage) Tactical-profile, resettable zero
Lens Coating Fully multi-coated lens
Illumination Red & Green illu.(Optional)
Eyepiece Focus Range (dpt) -2/+2
Eyepiece Focusing System Fast Focus
Focus Type Fixed
Parallax Adjustment Free at 100 yds
Color & Finish Matte Black
Battery CR2032
Waterproof YES (submersible,30cm@52℃ 2mins or 1m @room temperature ,30 mins )
Fogproof YES (Nitrogen Purged)
Shockproof YES(1000G's)
Reticle Type Etched (Can be customized)
Standard Accessories Filp-up covers/Lens Cloth
